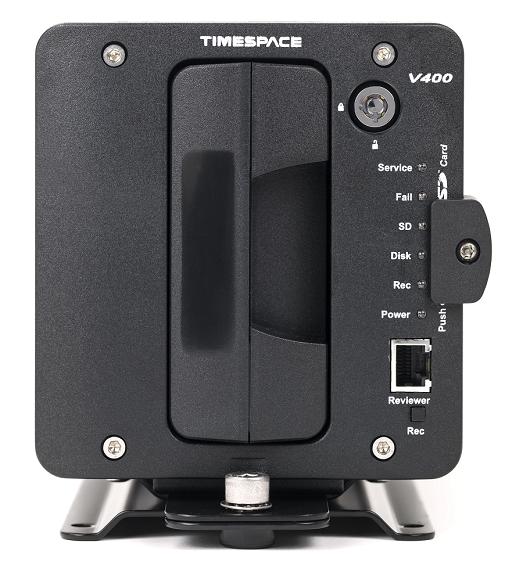

The Timespace V400 provides users with an innovative solution for vehicle CCTV, the culmination of many years’ experience in
developing reliable, high performance and cost-effective vehicle CCTV digital recorders for use on public transport.

Maximum recording storage time is available using the latest industry
standard H.264 video compression to capture crystal clear footage on removable HD cartridges up to 2TB. The combination of fully suspended hard disk for shock protection and dual recording capability to SD card ensures critical video footage is always available.

Built to last, the V400 uses industry proven power and signal connectors with short circuit protected camera inputs, whilst the inbuilt timer shutdown with hibernate mode using Wi-Fi option wake on LAN provides an efficient solution for uploading incident footage and system software updates. Industry leading PCLink viewing software is compatible with all Timespace recorders and displays the V400 inbuilt G-sensor and optional GPS data, providing dynamic map location to assist with driver training, leading to reduced fuel costs and leading to improved passenger comfort.

Using watermarking with SHA-256 authenticated digital signature,
embedded vehicle data (indicators, brakes etc.) and GPS, date, time,
speed and location, the V400 recorder footage meets the evidential
requirements when needed for court proceedings.

H.264 compression
1080p HD IP Camera support
File password protection and encryption settings
Bridge Alert - Timespace low bridge warning system
8, 12 or 16 independent video channels with up to 200ips
Transport for London diagnostic reporting with dual LAN ports
Quick install, compact, integrated one box solution
Built in power supply, timer shutdown, microphone pre-amp and GSensor
Up to 2TB recording media with additional backup SD card
Removable, fully suspended hard drive for long term reliability
Easy-audit and Playback with local Reviewer
Improved file system recovery from power interruption – V400 Recorders do not require a UPS
VCA E11 R10 approval (Electromagnetic compatibility)
Also available with VCA E11 R118 approval (fire safety/burning behaviour of materials)
